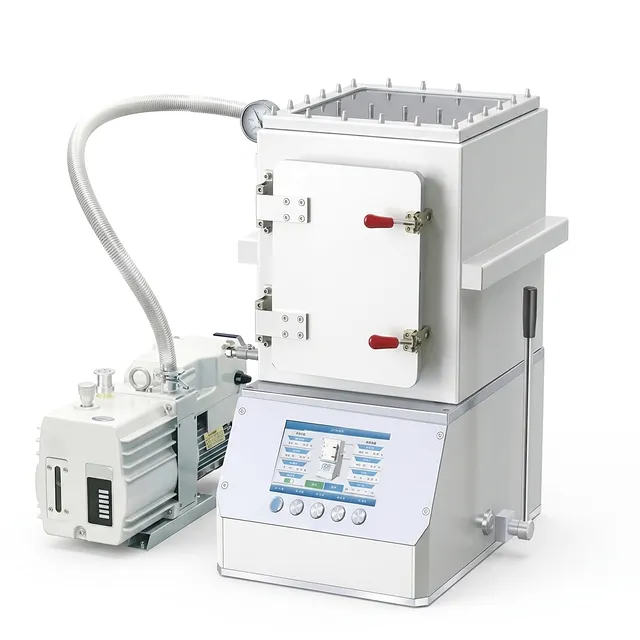

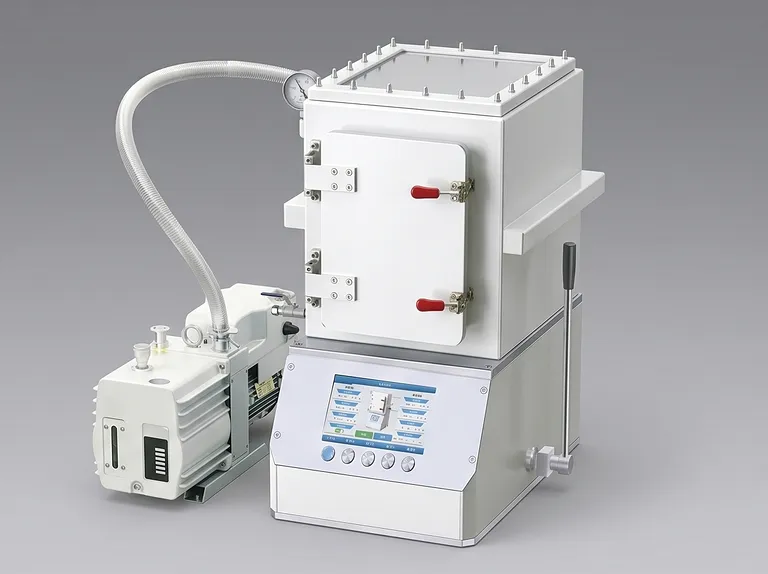

Manual Laboratory Vacuum Hot Press for Material Science Sintering and Sample Preparation

Product Overview

This high-performance laboratory system represents a pinnacle of engineering for material science research, integrating precise thermal management with robust hydraulic compression. Designed specifically for the synthesis of advanced materials, the equipment facilitates the simultaneous application of heat, pressure, and vacuum. This thermo-mechanical coupling is essential for achieving near-theoretical density in samples while inhibiting undesirable grain growth, making it a cornerstone for researchers developing high-performance ceramics, metal-matrix composites, and specialized polymers.

The unit is optimized for versatility across diverse industrial and academic sectors, including aerospace, nuclear energy, and semiconductor manufacturing. Its compact footprint belies a powerful capability to process materials under controlled atmospheres, which is critical for preventing oxidation and eliminating internal micro-bubbles in sensitive composites. Whether utilized for small-scale production or experimental prototyping, this system provides the operational consistency and reliability required for rigorous scientific inquiry and industrial quality control.

Constructed with premium industrial-grade components, this equipment is built to withstand the demanding conditions of high-temperature sintering and high-pressure compaction. Every detail, from the reinforced vacuum chamber to the intuitive control interface, reflects a commitment to precision and durability. This ensures that users can achieve reproducible results across hundreds of cycles, maintaining the stoichiometric integrity of their samples and the structural stability of the press itself under continuous operation.

Key Features

• Integrated Vacuum Atmosphere Control: The unit features a high-grade SUS 304 stainless steel vacuum chamber that allows for processing in an air-free environment, which is vital for preventing the oxidative degradation of sensitive fillers and ensuring the purity of the sintered end-product.
• Precision Multi-Stage Temperature Control: An advanced PID-based control system enables multi-stage heating profiles. This allows for precise ramping, soaking, and cooling phases, effectively preventing thermal shock in delicate materials and ensuring uniform heat distribution throughout the sample.
• Dual-Mode PLC Touch Interface: Equipped with a 7-inch high-resolution touchscreen, the system offers both "Standard" and "Advanced" operating modes. Users can easily monitor real-time pressure-temperature-time curves or program complex multi-step sequences for automated process consistency.
• High-Resolution Pressure Monitoring: The manual hydraulic system is paired with a digital display that provides pressure readings with a precision of 0.01 tons, allowing for extremely fine adjustments during the compaction process to meet exact material specifications.
• Reinforced Heating Platens: The heating surfaces are engineered for maximum flatness and thermal stability, ensuring that pressure is applied evenly across the entire surface area of the mold (120x120mm) to prevent localized stress points and sample cracking.
• Versatile Thermal Range Options: Depending on the specific configuration, the system can support temperatures ranging from ambient up to 800°C, providing the flexibility to work with everything from low-melting-point polymers like Polycaprolactone (PCL) to high-temperature refractory ceramics.
• Robust Safety and Monitoring: The equipment includes integrated safety valves and real-time data logging capabilities. The data management system allows for the export of processing curves, ensuring full traceability for quality assurance and academic publication standards.
• Industrial-Grade Vacuum Sealing: Utilizing high-performance gaskets and precision-machined chamber doors (200x200mm), the unit maintains vacuum integrity even during the mechanical stress of hydraulic pressing, eliminating the risk of internal voids in the final pellets.

Applications

Technical Specifications

The PP-HV08 series is available in three primary temperature configurations to suit specific research requirements. All models feature the same high-precision manual hydraulic system and SUS 304 vacuum chamber construction.

Why Choose This Product

• Superior Engineering Build: Constructed with a high-integrity SUS 304 vacuum chamber and reinforced hydraulic components, this system is designed for long-term operational stability in high-duty cycle laboratory environments.
• Enhanced Material Integrity: The combination of vacuum and heat effectively prevents oxidative degradation and gas entrapment, allowing for the production of samples with superior mechanical properties and stoichiometric precision.
• Precision and Traceability: With digital pressure monitoring to 0.01 tons and a data-logging touch interface, this unit provides the precise control and documentation required for advanced scientific publication and industrial quality standards.
• Compact and Versatile Design: Despite its industrial-grade performance, the unit is sized for standard laboratory benches, making it an ideal choice for facilities where space is at a premium but performance cannot be compromised.
• Comprehensive Support and Customization: We provide extensive technical documentation, responsive support, and the ability to customize heating and platen configurations to meet the specific needs of your unique research applications.

Contact us today for a technical consultation or to receive a formal quotation for your laboratory's material processing needs.
