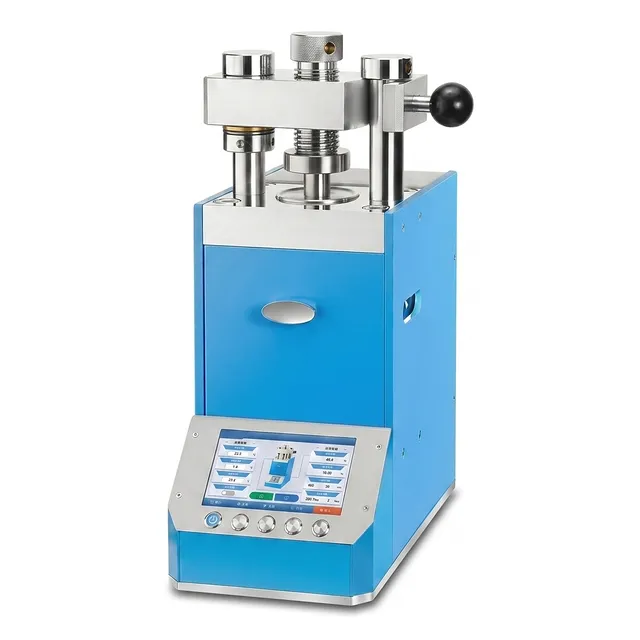

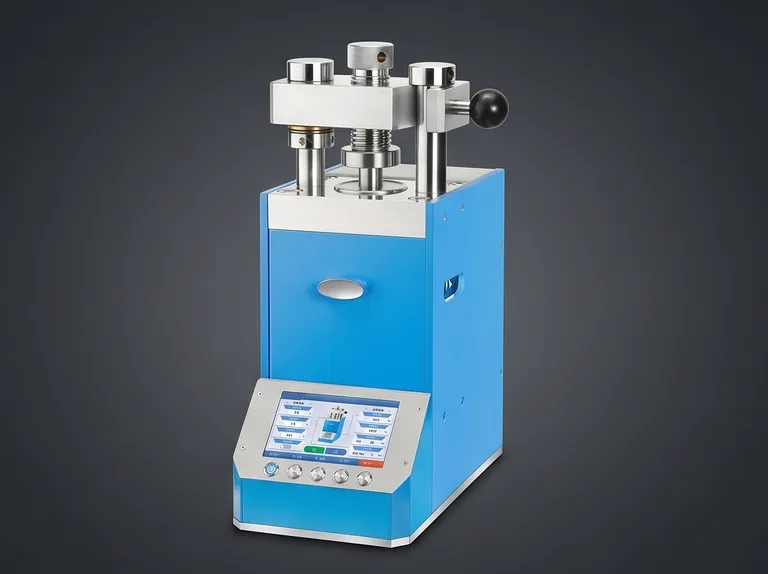

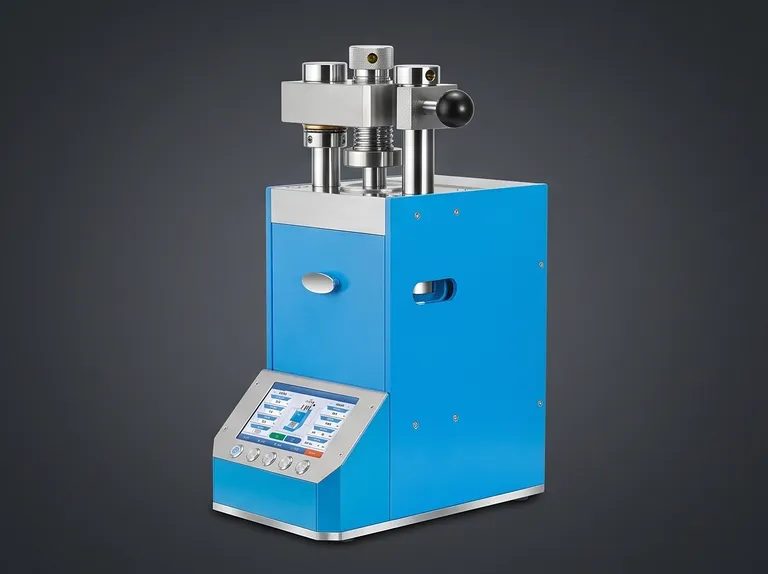

Laboratory Hot Isostatic Press Pellet Machine for Advanced Material Science Thermal Powder Compaction and Isostatic Pressure Processing

Product Overview

This high-performance laboratory equipment represents a significant advancement in material science sample preparation, combining thermal control with high-intensity isostatic pressure. By applying uniform pressure from all directions within a heated environment, the system is designed to eliminate residual micro-pores in powder metallurgy green bodies and ceramic composites. The equipment ensures that samples reach near-theoretical density, a critical requirement for researchers developing high-strength alloys, advanced ceramics, and electronic components. Its core value proposition lies in the ability to achieve superior material properties compared to standard cold pressing, providing a reliable platform for high-end material synthesis.

Primarily utilized in research laboratories, aerospace engineering, and pharmaceutical development, the unit excels in processing complex materials such as graphene-reinforced aluminum matrix composites and solid-state battery electrolytes. The simultaneous application of heat and pressure facilitates superior interfacial bonding, resulting in enhanced tensile strength and hardness. This equipment is a staple in industries where material purity, density uniformity, and structural integrity are non-negotiable, offering a versatile solution for both small-scale prototyping and specialized low-volume production.

Engineered for heavy-duty laboratory use, this system is built with high-grade components to ensure consistency under demanding operational conditions. The robust frame and precision-machined pressure chamber provide the stability required for repeatable results across thousands of cycles. With integrated safety protocols and a high-resolution control interface, users can operate the system with absolute confidence. This unit is not merely a tool but a foundational instrument for material innovation, designed to deliver industrial-grade performance within a compact laboratory footprint.

Key Features

• Programmable 18-Stage Thermal Control: The system features an advanced 18-stage programmable logic controller, allowing users to define complex temperature and pressure ramps. This enables precise management of heating rates, dwell times, and cooling phases to prevent thermal shock and optimize material density.
• High-Density Isostatic Compression: Unlike uniaxial presses, this equipment delivers 300MPa of uniform isostatic pressure. This ensures that the force is applied equally to all surfaces of the sample, resulting in exceptional green density and minimizing internal defects or structural gradients.
• Intelligent 7-Inch HMI Touchscreen: A high-definition IPS touch interface provides a centralized hub for monitoring real-time data. The interface displays instantaneous pressure and temperature curves, allowing operators to make data-driven adjustments and ensure the process adheres to strict experimental parameters.
• Precision Force Monitoring: With a pressure display accuracy of 0.01 tons, the equipment allows for extremely fine adjustments. This level of precision is essential for delicate pharmaceutical compactions or when working with specialized nanomaterials that require exact force thresholds.
• Automated Data Logging and Export: To support modern laboratory documentation standards, the unit includes a USB export function. All process data, including time, temperature, and pressure logs, can be exported directly into Excel format for comprehensive post-process analysis and reporting.
• Robust Safety Interlocking System: The system is equipped with automatic pressure and temperature overload protection. Built-in limit switches and a secure upper arm linkage ensure that the equipment remains within safe operating envelopes, protecting both the operator and the sensitive material samples.
• Industrial-Grade Component Durability: The interface is equipped with high-quality metal buttons rated for over 100,000 cycles. This focus on durability extends to the chrome-plated components and reinforced hydraulic lines, ensuring long-term reliability in aggressive industrial research environments.
• Ergonomic Linkage Design: The upper arm of the press is designed with a linkage mechanism that simplifies the loading and unloading process. This ergonomic feature reduces operator fatigue and streamlines the workflow when processing multiple samples in succession.

Applications

Technical Specifications

Why Choose This Product

Choosing this equipment means investing in a tool designed for the most rigorous material science applications. The combination of 300°C thermal capability and 300MPa isostatic pressure allows researchers to explore material phases and densities that are unreachable with standard laboratory presses. This system is engineered with a focus on precision, from the 0.01T resolution to the 18-stage PID logic controller, ensuring that every sample is processed under identical, reproducible conditions.

The build quality of the equipment reflects an industrial-grade philosophy. Using heavy-duty metal buttons and a reinforced chassis, the unit is designed to withstand the stresses of high-pressure operation over a long service life. The inclusion of a 7-inch IPS screen and automated data logging provides a modern, user-centric experience that simplifies complex experimental setups and ensures data integrity for publication or industrial validation.

Furthermore, the versatility of the chamber and the intuitive sample loading mechanism make it ideal for multi-disciplinary facilities. Whether you are working on the next generation of solid-state batteries or exploring the limits of powder metallurgy, this system provides the flexibility and power required for success. We are committed to supporting your material research goals with precision engineering and responsive technical assistance.

Please contact our technical sales team today for a formal quotation or to discuss a customized solution for your specific material processing requirements.
