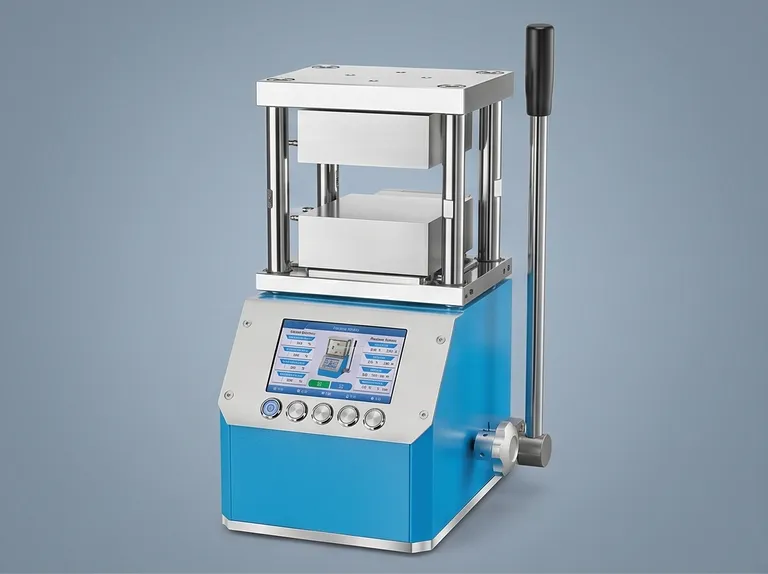

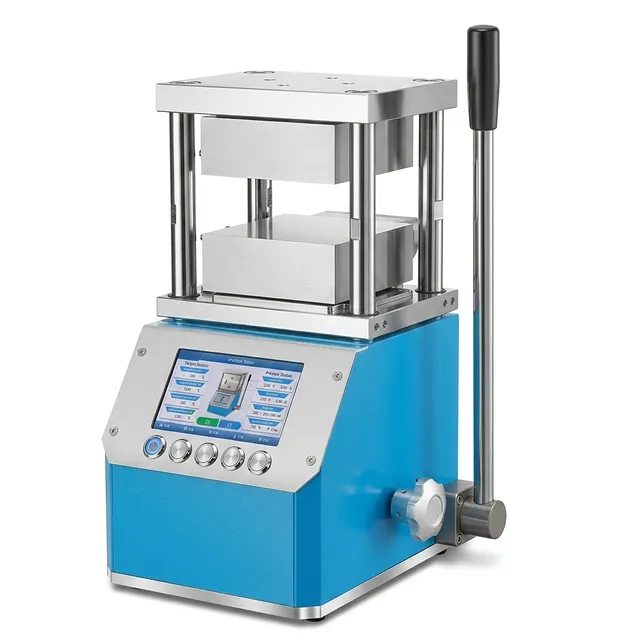

Integrated Laboratory Manual Hot Press Machine for Powder Compaction and Material Research

Product Overview

This integrated laboratory manual hot press represents a sophisticated solution for material science professionals requiring precise powder compaction and thermal processing. Designed as a standalone, compact unit, this system combines a high-performance hydraulic press with dual-zone heating platens, allowing for the simultaneous application of pressure and temperature. Its core value proposition lies in its ability to produce highly consistent, high-density samples for analytical techniques such as X-ray fluorescence (XRF) and Fourier-transform infrared spectroscopy (FTIR), while maintaining a small footprint suitable for modern laboratory environments.

Primary use cases for this equipment span across academic research, industrial quality control, and advanced material development. It is particularly effective in sectors such as battery energy, advanced ceramics, and pharmaceutical chemistry, where the homogenization of powder samples under specific thermal conditions is critical. Whether used for pilot-scale testing or routine sample preparation, the equipment provides a robust platform for creating pellets and films with repeatable physical properties, ensuring that downstream analysis is based on standardized specimens.

Engineered for reliability, the system features a reinforced structural frame and a high-precision hydraulic circuit designed for longevity. The integration of advanced digital controls with a heavy-duty manual drive ensures that users have tactile feedback during the compression cycle while benefiting from the accuracy of electronic temperature and timing monitoring. This unit is built to withstand the rigors of demanding research schedules, offering consistent performance and minimal maintenance requirements in high-throughput environments.

Key Features

• Integrated High-Precision Hydraulics: The manual hydraulic system utilizes a chrome-plated 50mm piston to deliver up to 5 tons of force with a precision of 0.01 tons, ensuring exceptionally stable pressure application for delicate sample prep.
• Dual-Zone Programmable Heating: Equipped with two independent heating plates, this system allows for uniform thermal distribution across the sample surface, minimizing thermal gradients that could affect material crystallinity or density.
• Advanced 5-Inch Touchscreen Interface: The intuitive digital controller provides real-time monitoring of temperature, pressure, and holding time, significantly reducing the potential for operator error compared to analog gauges.
• 18-Stage Programmable Logic: In advanced operating modes, the equipment supports up to 18 distinct segments for heating, cooling, and pressure holding, allowing for complex thermal-mechanical processing cycles.
• Superior Thermal Insulation: High-density insulation materials surround the heating elements and platens, protecting the internal electronics and ensuring operator safety while maintaining high energy efficiency.
• Versatile Cooling Options: The unit is designed with modularity in mind, supporting both standard fan-assisted air cooling and optional water-cooling loops for rapid temperature cycles and increased throughput.
• Industrial-Grade Chrome Plating: The piston and critical load-bearing surfaces are chrome-plated to prevent corrosion and wear, ensuring smooth operation even after thousands of cycles in challenging lab environments.
• Comprehensive Data Management: The internal system allows for the storage and recall of previous processing parameters, enabling laboratories to standardize their workflows and achieve perfect batch-to-batch repeatability.

Applications

Technical Specifications

The following table outlines the comprehensive performance metrics for the PP-HV05 series. This equipment is available in three distinct temperature configurations to suit various material requirements.

Why Choose This Product

• Precision Engineering: Unlike standard hydraulic presses, this unit offers laboratory-grade precision with 0.01-ton pressure increments and PID-controlled temperature accuracy, essential for reproducible material science research.
• Integrated Safety and Efficiency: The all-in-one design eliminates external hydraulic lines and exposed heating elements, creating a safer workspace while significantly reducing the time required for sample setup and teardown.
• Flexible Operational Modes: The inclusion of both a "Standard Mode" for quick manual tasks and an "Advanced Mode" for complex 18-stage thermal programming provides the versatility needed for both routine QC and deep R&D exploration.
• Proven Durability: Utilizing high-quality chrome-plated components and a reinforced chassis, this system is designed for long-term operational consistency, ensuring that your investment provides reliable data for years to come.
• Data-Driven Workflow: With real-time curve displays and historical parameter management, laboratories can easily document their processes and comply with rigorous academic or industrial standards.

Contact our technical sales team today for a customized quote or to discuss how this integrated hot press can be optimized for your specific material processing requirements.
