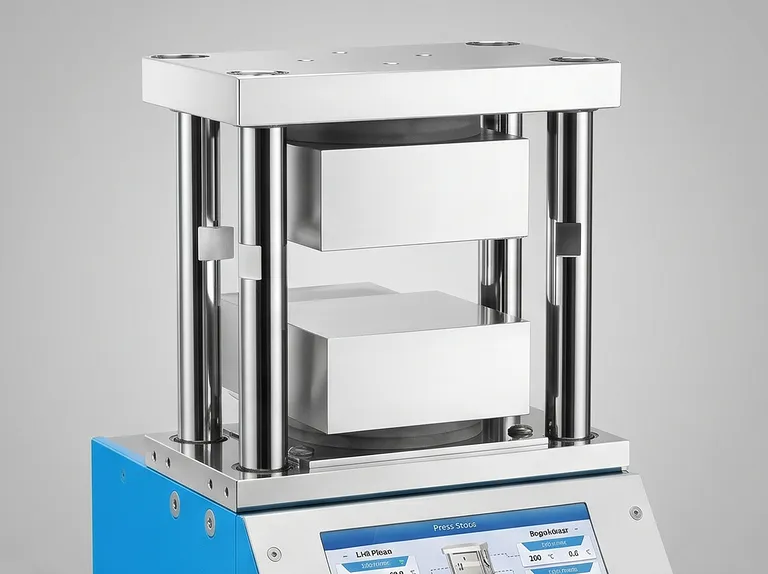

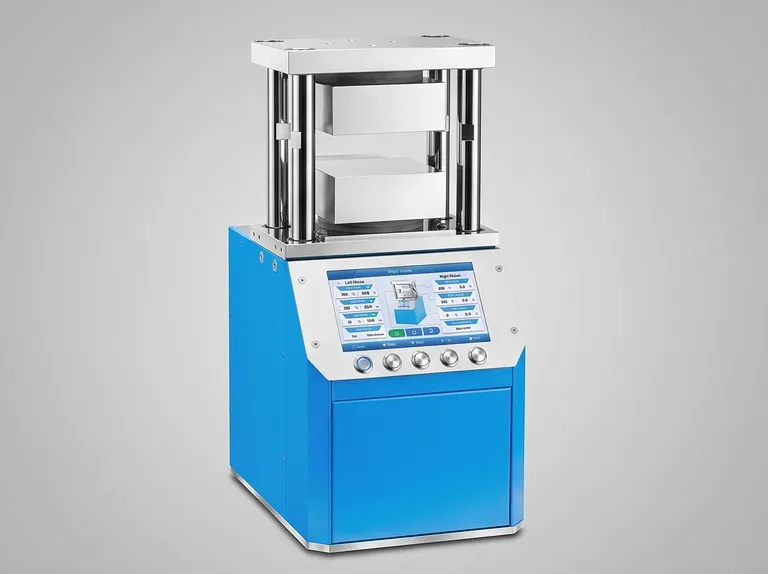

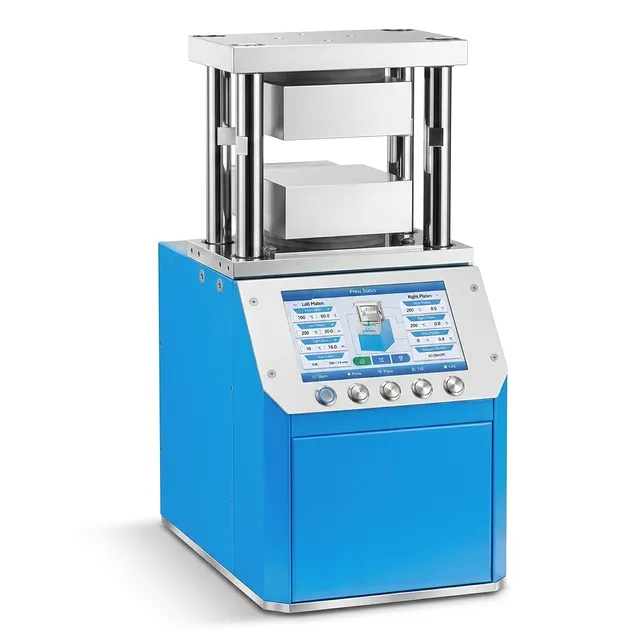

Fully Automatic Laboratory Hot Press for Advanced Material Research and Powder Compaction

Product Overview

This high-precision fully automatic hot press represents the pinnacle of laboratory sample preparation technology, combining robust hydraulic force with sophisticated thermal control. Designed to meet the rigorous demands of material science research, the equipment provides a seamless, automated workflow that eliminates the variability inherent in manual pressing operations. By integrating advanced heating elements with a stabilized hydraulic system, this unit ensures that every pellet or wafer produced meets the exact density and structural integrity required for high-end analytical procedures.

Optimized for a diverse range of industries, this system is a critical asset in sectors such as advanced ceramics, battery technology, and pharmaceutical development. Whether it is being used for solid-state electrolyte fabrication or the compaction of specialized catalyst powders, the equipment maintains exceptional thermal uniformity and pressure stability. The user-centric design focuses on throughput and reproducibility, making it an ideal choice for both high-traffic academic laboratories and industrial quality control environments where precision is non-negotiable.

Built with premium industrial-grade components, this unit is engineered for long-term reliability under continuous operating cycles. The structural frame is designed to resist deformation even at peak tonnage, ensuring that the parallel alignment of the platens remains true over thousands of cycles. This commitment to engineering excellence provides researchers with the confidence that their sample preparation process is a controlled variable, allowing them to focus entirely on their material analysis and experimental outcomes.

Key Features

• Intelligent PLC Control System: The equipment features a sophisticated PLC architecture managed via a 7-inch high-definition touch interface. This system allows for the storage of complex pressing profiles, ensuring that sophisticated multi-stage processes can be executed with a single touch, significantly reducing operator error and increasing laboratory efficiency.
• Multi-Stage Programmable Logic: Users can configure up to 18 distinct stages of pressure and temperature gradients. This capability is essential for materials that require specific dwell times at intermediate temperatures or graduated pressure increases to prevent cracking or internal delamination within the sample.
• Precision Pressure Regulation: Utilizing advanced hydraulic feedback loops, the unit delivers pressure control with an accuracy of 0.01 tons. This level of sensitivity is vital for thin-film applications and the compaction of delicate powders where over-pressurization could lead to structural failure of the material.
• Advanced Thermal Management: High-density heating elements are embedded within the platens to provide rapid heating and superior temperature uniformity. Controlled by a precision PID algorithm, the system maintains a temperature accuracy of ±0.1°C, ensuring that phase transitions or chemical reactions occurring during the pressing process are perfectly controlled.
• Integrated Rapid Cooling Technology: To decrease cycle times and protect sensitive samples from over-exposure to heat, the system includes built-in cooling channels. The equipment can be connected to an industrial chiller to facilitate automatic water cooling, allowing for rapid quenching or controlled cooling rates as required by the specific material protocol.
• Comprehensive Data Logging and Export: In compliance with modern laboratory standards, all process parameters including pressure-time and temperature-time curves are displayed in real-time. This data can be exported via USB in Excel-compatible formats, providing a complete digital audit trail for every sample produced.
• Robust Safety and Insulation Architecture: The heating zones are protected by high-performance insulation boards to prevent thermal transfer to the hydraulic components and external casing. This not only protects the internal electronics but also ensures a safe operating environment for laboratory personnel.
• Versatile Mold Compatibility: The platen design is engineered to accommodate a wide variety of mold geometries and sizes. This flexibility allows researchers to switch between square, circular, or custom-shaped samples without requiring extensive re-tooling of the base unit.

Applications

Technical Specifications

Why Choose This Product

• Superior Engineering Precision: This system is manufactured using aerospace-grade tolerances, ensuring that pressure is applied perfectly perpendicular to the sample surface. This precision prevents the internal stresses and uneven densities that often plague samples produced on lower-quality equipment.
• Unmatched Process Repeatability: Through its 18-stage programmable logic controller, this unit removes the human element from sample preparation. Once a protocol is validated, it can be replicated across different operators and shifts with identical results, which is fundamental for rigorous scientific publication and industrial R&D.
• Robust Thermal Stability: The combination of advanced PID control and high-performance insulation means that the heating platens reach their setpoints faster and stay there with minimal fluctuation. This thermal stability is critical for sensitive materials that have narrow processing windows.
• Data-Driven Quality Control: With integrated real-time graphing and USB data export, this press supports modern laboratory informatics. Every sample comes with a verifiable record of the exact pressure and temperature it was subjected to, facilitating easier troubleshooting and compliance with internal quality standards.
• Compact and Integrated Design: Despite its high tonnage and thermal capabilities, the unit maintains a small footprint suitable for standard laboratory benches. The integration of the hydraulic pump and electronics into a single housing reduces cable clutter and simplifies laboratory setup.

For researchers seeking to elevate their material synthesis capabilities, this fully automatic hot press provides the reliability and precision required for the next generation of materials. Contact our technical sales team today for a customized quote or to discuss your specific mold and temperature requirements.
