Laboratory Warm Isostatic Pressing Machine Split Design High Pressure Powder Compaction Research

Product Overview

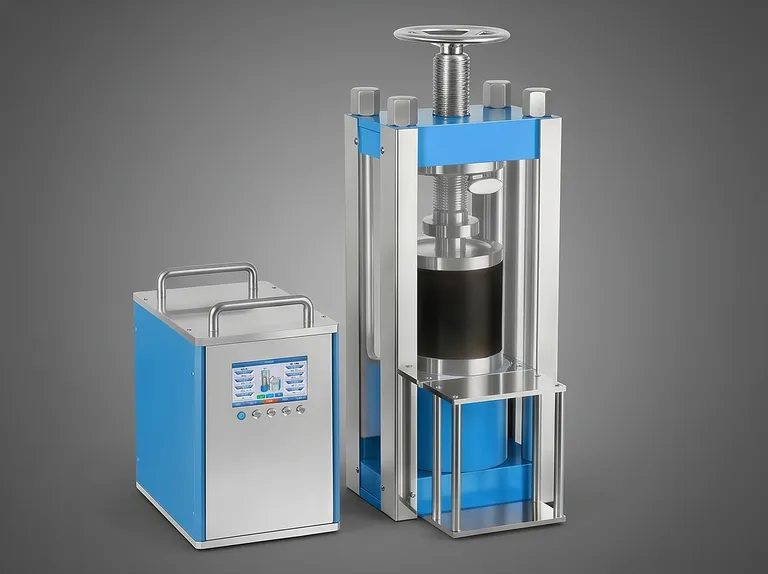

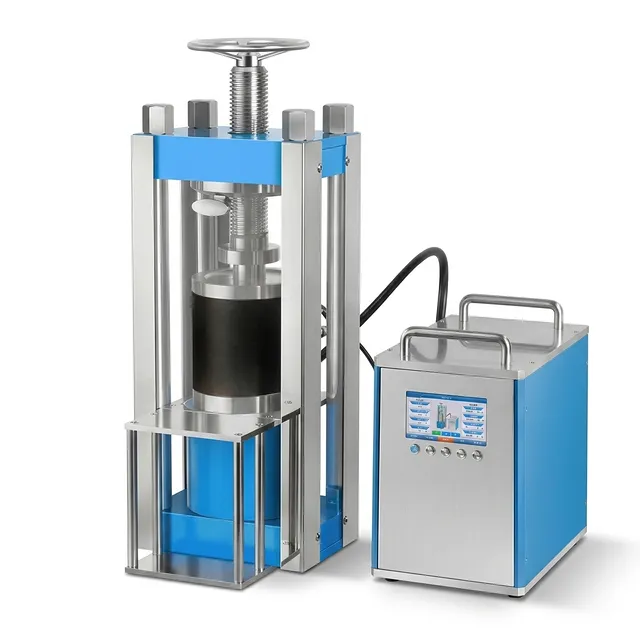

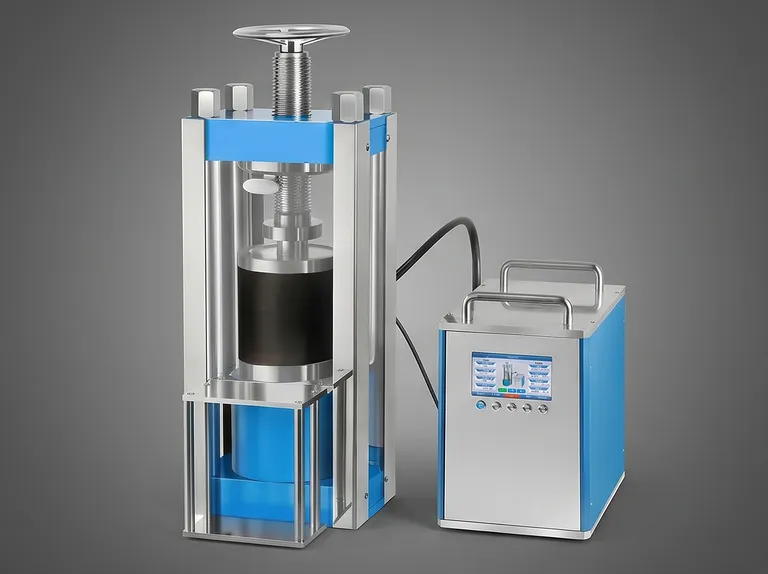

This high-performance laboratory equipment represents the pinnacle of powder compaction technology, specifically engineered for material science researchers who require extreme precision and uniformity. By utilizing a split-type architecture, the system separates the hydraulic power and control interface from the high-pressure pressing chamber. This design not only enhances operational safety but also provides a more stable thermal environment for the sample during the warm isostatic pressing (WIP) process. The core value proposition of this unit lies in its ability to achieve superior green density and isotropic structural integrity, which are critical for advanced material development.

Primarily utilized in research and development laboratories, the equipment serves vital roles in the ceramics, electronics, and energy storage sectors. It is designed to handle a diverse range of materials, including advanced technical ceramics, solid-state battery electrolytes, and specialized metal powders. By applying uniform pressure across all directions while simultaneously maintaining a controlled temperature of up to 300°C, the unit eliminates internal stresses and density gradients that are commonly found in traditional uniaxial pressing methods. This leads to significantly reduced shrinkage and deformation during subsequent sintering processes.

Engineered for reliability under demanding industrial and research conditions, this system features a robust mechanical build and sophisticated electronic controls. The integration of high-precision pressure sensors and a multi-step programmable logic controller ensures that every cycle is repeatable and documented. Whether used for small-scale prototype development or standardized material testing, the equipment delivers the consistency and durability required by modern material scientists. Its split-configuration also facilitates easier maintenance and provides a more ergonomic workspace for operators handling sensitive samples.

Key Features

• Advanced Split-Type Architecture: The separate design of the main press and the control cabinet enhances thermal isolation and operational safety, protecting sensitive electronics while providing a more flexible laboratory layout.
• Precision Multi-Step Programmable Control: The integrated PLC allows for up to 18 distinct segments of temperature and pressure ramping, enabling complex material processing profiles that are essential for high-performance ceramic and composite manufacturing.
• Ultra-High Pressure Capability: Capable of delivering up to 300MPa of isostatic pressure, this equipment ensures maximum densification of powder compacts, which is critical for achieving theoretical density in advanced material research.
• Integrated Water-Cooling System: A high-efficiency water-cooling circuit facilitates rapid temperature reduction after the heating cycle, significantly shortening turnaround times and increasing the overall throughput of the laboratory.
• High-Resolution Data Visualization: Equipped with a 7-inch industrial-grade touchscreen, the system provides real-time graphing of pressure and temperature curves, allowing operators to monitor the precise state of the sample throughout the process.
• Robust Safety Engineering: The pressing chamber is protected by an organic glass safety shield and features over-pressure protection valves and electronic limit switches to ensure a secure operating environment even at maximum load.
• Superior Material Compatibility: The design is optimized for a wide variety of powders, including hard technical ceramics and soft polymers, providing a versatile platform for multi-disciplinary material exploration.
• Precision Metal Sealing Technology: Utilizing a proprietary sealing design, the system maintains consistent pressure over long durations with minimal leakage, ensuring the integrity of long-cycle compaction experiments.
• Seamless Data Export: All process parameters and historical data can be exported via USB in Excel format, streamlining the documentation process for research papers and industrial quality control reports.

Applications

Technical Specifications

Why Choose This Product

• Superior Engineering Precision: The PP-IP06 is built with industrial-grade components designed to withstand the rigors of high-pressure and high-temperature cycles without compromising on accuracy.
• Enhanced Material Uniformity: Unlike standard presses, this warm isostatic system applies uniform force from all directions, significantly improving the structural integrity and green density of your samples.
• Unmatched Process Flexibility: With 18-step programmable logic, researchers can fine-tune every stage of the compaction process, from gradual pressure loading to precise thermal soaking.
• Comprehensive Safety Design: From the organic glass shielding to the automated over-pressure relief systems, the equipment is designed to prioritize operator safety in a high-energy lab environment.
• Proven Reliability: Our systems are trusted by leading material science laboratories worldwide, offering long-term operational consistency and minimal maintenance requirements.

For a customized quotation or to discuss your specific material processing requirements, please contact our technical sales team today.
