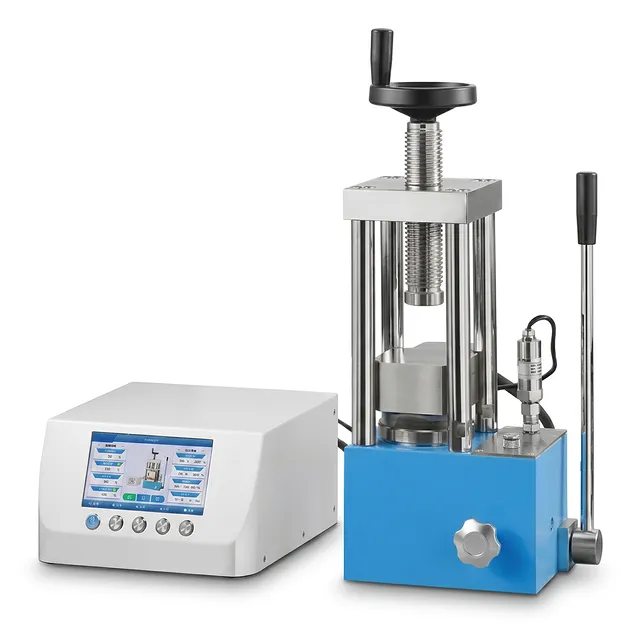

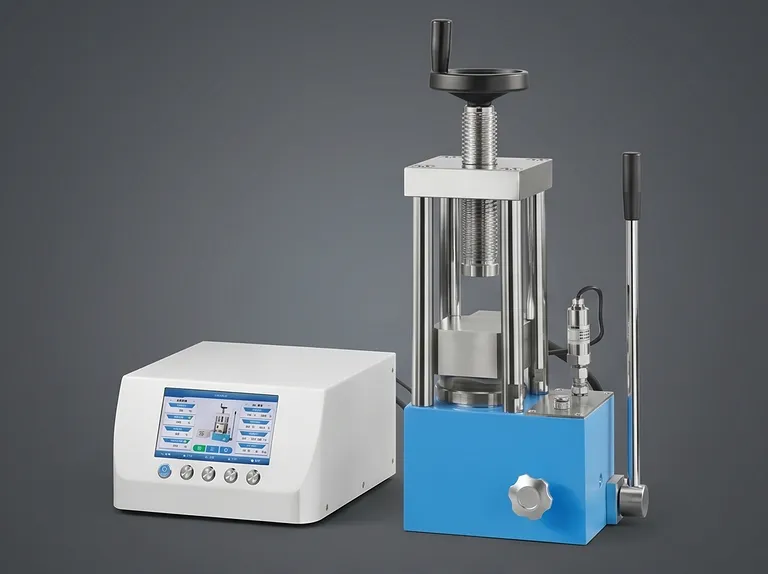

Single Plate Laboratory Hot Press Thermal Powder Compaction Machine High Temperature Hydraulic Pellet Press for Material Research

Product Overview

This high-precision laboratory thermal compaction system is engineered to provide simultaneous application of high hydraulic pressure and controlled temperature for advanced material synthesis. Designed for the rigorous demands of material science, the equipment enables researchers to produce dense, high-quality pellets from powder precursors. By integrating a patented hydraulic structure with an advanced digital heating control unit, this system facilitates the study of phase transitions, sintering behaviors, and thermo-pressure bonding in a controlled benchtop environment.

The equipment is widely utilized in scientific research institutions, high-tech manufacturing, and quality control departments across the globe. It serves as a critical tool in industries ranging from semiconductor development and advanced ceramics to pharmaceutical formulation and renewable energy battery research. Its compact footprint and integrated design make it an ideal solution for laboratories where space is at a premium but performance cannot be compromised. The system provides a stable, repeatable platform for the preparation of solid electrolytes, catalyst beds, and ceramic superconductors.

Reliability is at the core of this unit's engineering. Unlike traditional multi-component presses that are prone to alignment issues and hydraulic leaks, this system features a patented integrated main body. This robust construction ensures that pressure is applied uniformly across the sample surface, minimizing internal stresses and defects in the final pellet. The combination of industrial-grade hydraulics and precision-machined heating plates delivers the consistency required for high-impact scientific publications and industrial pilot-scale testing.

Key Features

• Patented Integrated Structural Design: The main frame of the unit is manufactured using a patented one-piece casting process. This eliminates the need for multiple bolted joints, significantly increasing structural rigidity, preventing oil leakage common in modular systems, and ensuring long-term alignment of the heating plates under high-tonnage loads.
• Precision Multi-Segment Programmable Control: The system features a sophisticated 18-segment programmable controller. This allows users to define complex heating ramps, dwell times, and cooling stages, providing total control over the thermal history of the sample to optimize crystalline growth or polymer bonding.
• High-Resolution Hydraulic Accuracy: Equipped with a precision-calibrated digital gauge, the system offers a pressure resolution of 0.01 tons. This level of sensitivity is essential for research involving delicate materials where slight over-pressurization can lead to micro-fractures or phase degradation.
• Advanced Chromium-Plated Engineering: All critical load-bearing columns and the main hydraulic piston are treated with a thick industrial chromium plating. This not only provides exceptional corrosion resistance against aggressive chemical powders but also ensures a smooth, low-friction stroke for highly repeatable pressure application.
• Efficient Water-Cooling Interface: To facilitate rapid throughput and protect sensitive internal components during high-temperature runs, the unit includes integrated water-cooling ports. This allows for fast cooling cycles, enabling researchers to process more samples per shift while maintaining a safe operating temperature for the equipment housing.
• Premium Imported Sealing Systems: Utilizing high-grade imported oil seals, this press is designed for maintenance-free operation over thousands of cycles. The superior sealing technology prevents pressure drop-off during long dwell times, ensuring that the target force remains constant throughout the entire compaction process.
• Safety-First Ergonomics: The unit is equipped with a high-strength transparent safety shield and a heavy-duty pressure relief spring. The spring mechanism ensures the piston returns to the neutral position quickly and safely after pressure release, reducing manual effort and enhancing operator safety during repetitive testing.
• Dual-Zone Temperature Uniformity: The heating plates are engineered with optimized heating element placement to ensure minimal thermal gradients across the sample area. This uniformity is critical for preventing uneven density distributions in large-diameter pellets.

Applications

Technical Specifications

Why Choose This Product

• Superior Build Quality: The patented integrated body construction sets this system apart from standard laboratory presses, offering unmatched rigidity and a leak-free hydraulic circuit that ensures years of reliable service in demanding research environments.
• Unparalleled Thermal Precision: With 0.1°C temperature resolution and 18-segment programming, researchers can execute complex thermal-pressure profiles that are impossible on manual or basic digital systems, ensuring the highest level of experimental repeatability.
• Robust Maintenance Profile: By utilizing chromium-plated load columns and imported high-performance seals, this unit reduces the total cost of ownership through minimized wear and extended service intervals, even when used with abrasive or corrosive powder samples.
• Integrated Safety and Efficiency: Features like the water-cooling interface and the heavy-duty return spring are designed to maximize lab throughput while maintaining the highest safety standards for the operator.
• Flexible Customization: We offer a wide range of compatible dies and customized heating plate configurations to meet the specific requirements of your unique material processing workflow.

Our team is ready to assist you in selecting the ideal configuration for your laboratory needs. Contact us today for a technical consultation or a formal quotation.
