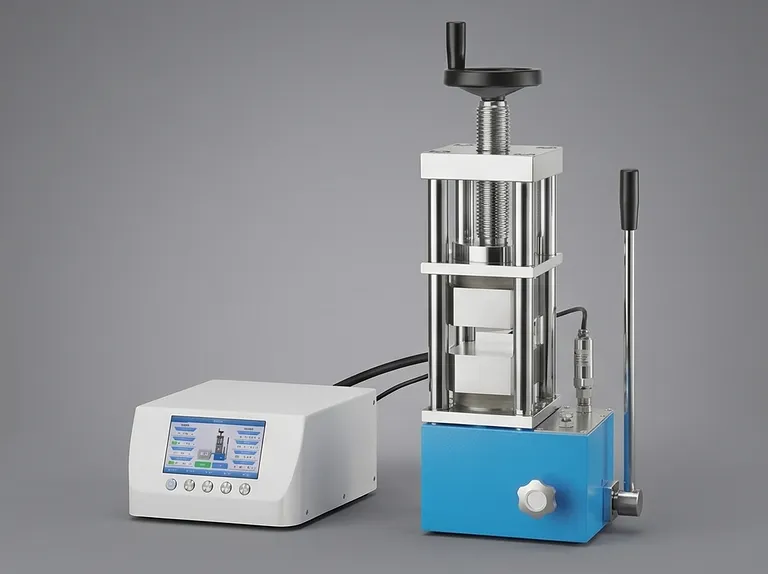

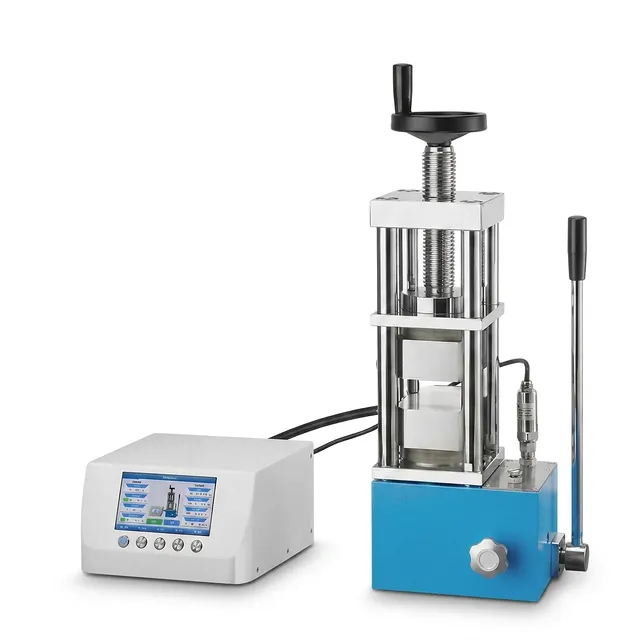

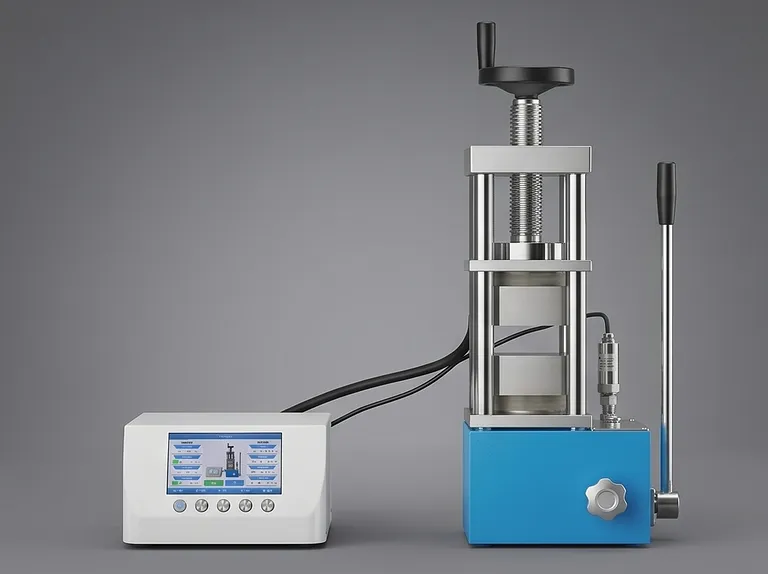

Laboratory Manual Dual Plate Octagonal Heat Press with Digital Control and 100mm Heating Area

Product Overview

This high-precision laboratory thermal compression system is engineered to provide a robust solution for material science researchers and industrial quality control specialists. By integrating dual-plate heating capabilities with a manual hydraulic mechanism, the equipment offers a versatile platform for the synthesis of thin films, pelletizing of powders, and thermal molding of polymers. The core value proposition lies in its ability to maintain extreme thermal stability and pressure consistency, ensuring that every sample produced meets rigorous scientific standards for density and homogeneity.

Designed for demanding laboratory environments, this unit is widely utilized in sectors such as solid-state battery research, semiconductor development, and advanced ceramics manufacturing. The equipment's compact footprint and octagonal plate geometry allow for efficient heat distribution while occupying minimal bench space. Its intuitive digital interface simplifies complex thermal cycles, making it an essential tool for laboratories focused on the development of new materials and the refinement of existing chemical processes.

Built with a focus on long-term reliability, the system features a reinforced structural frame and a high-integrity hydraulic circuit. The use of premium chrome-plated components and advanced insulation materials ensures that the equipment performs consistently under high-temperature and high-pressure conditions. Procurement teams can trust in this unit's durability, as it is designed to withstand the rigors of continuous daily use in both academic research and industrial testing facilities, delivering a superior return on investment through operational longevity.

Key Features

• Dual-Plate Precision Heating: The system incorporates both upper and lower heating elements that can be controlled independently, allowing for uniform heat transfer across the entire 100mm x 100mm octagonal sample area.
• Advanced 7-Inch Touchscreen Interface: Featuring a high-resolution digital controller, the system provides real-time monitoring of temperature and pressure, with dedicated modes for standard operation and complex multi-stage programming.
• High-Accuracy PID Temperature Regulation: Integrated PID controllers maintain a temperature precision of ±0.1°C, preventing thermal overshoot and ensuring the integrity of temperature-sensitive material samples during the compaction process.
• Integrated Water Cooling Support: The equipment is designed with rapid-cooling jackets that support external water circulation, significantly reducing the downtime between sample cycles by accelerating the cooling of the heating platens.
• Optimized Octagonal Platen Geometry: The unique octagonal design of the heating plates provides superior mechanical stability and more uniform thermal expansion compared to traditional rectangular plates, reducing the risk of sample warping.
• Comprehensive Data Visualization: The advanced control software allows users to view real-time heating curves and pressure gradients, facilitating deep analysis of material behavior during the compression phase.
• Robust Hydraulic Safety Seals: Utilizing a proprietary sealing technology, the hydraulic pump is designed for leak-free operation, maintaining precise pressure levels (up to 24 tons) without the gradual pressure decay common in lower-tier presses.
• Programmable Multi-Step Profiles: The advanced mode supports up to 18 distinct segments of temperature and pressure, enabling the automation of complex curing or sintering schedules for advanced polymer and ceramic research.

Applications

Technical Specifications

Why Choose This Product

• Precision Engineering for Research: This system is manufactured to the highest standards of mechanical tolerance, ensuring that the heating plates remain perfectly parallel even under maximum tonnage.
• Enhanced Operational Efficiency: The combination of an intuitive touchscreen, programmable cycles, and integrated water cooling allows for high-throughput sample preparation with minimal manual intervention.
• Industrial-Grade Reliability: Featuring a reinforced frame and high-quality hydraulic seals, the unit is built for heavy-duty cycles, providing consistent performance that research teams can rely on for years of service.
• Flexible Customization: Whether you require standard 300°C heating or the specialized 500°C high-temperature configuration, this platform is adaptable to a wide range of material science requirements.
• Superior User Safety: Thermal insulation layers and a stable octagonal base design prioritize operator safety while maintaining high thermal efficiency and protecting sensitive laboratory environments.

For technical consultation or to request a customized configuration for your material processing needs, please contact our engineering team for a detailed quote.
