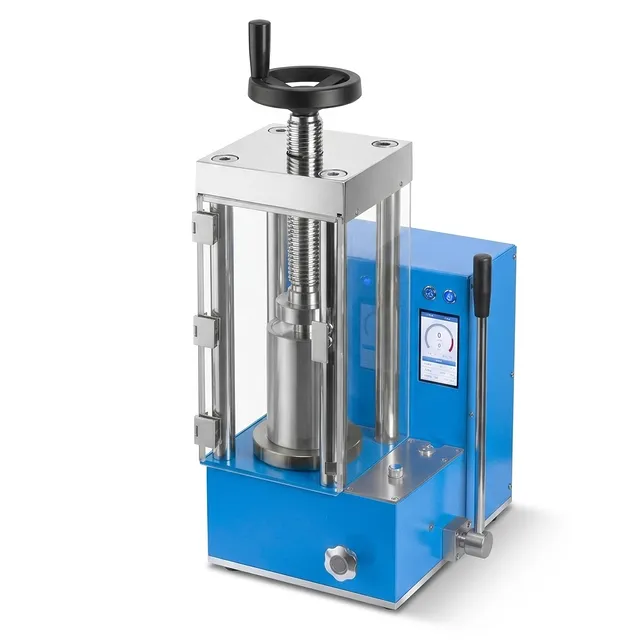

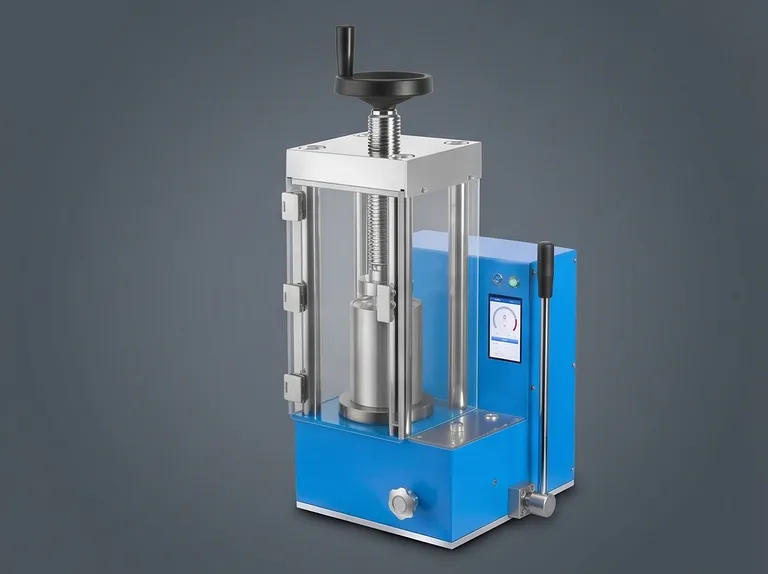

Electric Cold Isostatic Press Laboratory Powder Compaction Machine Automatic Pelleting System for Material Science Research

Product Overview

This advanced laboratory electric cold isostatic press represents a significant technological leap in powder compaction and material synthesis. By applying equal hydrostatic pressure from all directions, this system eliminates the internal friction and wall-friction effects inherent in traditional uniaxial pressing. The result is a compacted green body with outstanding structural homogeneity, uniform density distribution, and minimal internal stress, making it an essential instrument for modern materials research and advanced development laboratories.

Designed specifically to support cutting-edge investigations in solid-state batteries, advanced ceramics, powder metallurgy, and catalyst preparation, this equipment provides the precise force control required to process delicate and difficult-to-compact materials. Target industries include aerospace engineering, energy storage development, semiconductor manufacturing, and biomedical implant research. The automated operation ensures that delicate samples can be reliably prepared without the structural defects commonly introduced by manual pressing systems.

Engineered for ultimate reliability under extreme operating conditions, this unit features a patented integrated hydraulic cylinder structure that reduces leakage points and maintains high-pressure stability. Built using premium-grade materials and high-precision components, the equipment ensures repeatable performance over thousands of cycles. Laboratory managers and procurement teams can invest in this system with complete confidence, knowing it delivers the rigorous safety standards, operational consistency, and long-term durability required for demanding research workflows.

Key Features

• Patented Leak-Free Monoblock Design: Engineered with an integrated oil cylinder structure that minimizes hydraulic sealing interfaces, virtually eliminating oil leaks and ensuring compatibility with pristine cleanroom and laboratory environments.
• Precision Touch-Screen PLC Controller: An intuitive 4.3-inch color touch-screen interface allows users to set precise target pressures, holding times, and sample dimensions, with the system displaying real-time pressure curves and cycle progress.
• Dynamic Load-to-Pressure Conversion: The onboard microprocessor automatically calculates and converts the applied hydraulic force (Tons) into true isostatic pressure (MPa) based on the specific dimensions of the sample chamber, ensuring precise experimental replication.
• Controlled Programmed Decompression: Features an adjustable slow-release program that manages venting speed to protect delicate, binder-less, or high-aspect-ratio samples from cracking, capping, or laminating during rapid depressurization.
• High-Performance Isostatic Chamber: The robust high-tensile alloy chamber is rated for continuous operation up to 300 MPa and includes a flexible polyurethane sleeve, facilitating the production of uniform rod, bar, or custom-shaped compacts.
• Advanced Overload and Safety Protection: Equipped with dual-layer safety protection including a software-defined digital overpressure alarm and a physical high-pressure relief valve to immediately halt operation if limits are exceeded.
• Four-Column Rigid Frame Architecture: Built with four precision-ground, high-strength steel columns to provide superior structural rigidity, minimizing mechanical deflection and ensuring uniform force distribution during high-pressure cycles.
• Impact-Resistant Safety Shield: A transparent, heavy-duty plexiglass safety enclosure surrounds the pressing area, providing clear visual monitoring of the compaction cycle while protecting operators from accidental debris or pressure discharge.

Applications

Technical Specifications

This section details the complete mechanical, electrical, and physical specifications of the PP-IP02 electric cold isostatic press. All measurements are calibrated to international laboratory standards to guarantee accurate integration into your facilities.

Why Choose This Product

• Premium Structural Engineering: The patented monoblock hydraulic design prevents the typical oil leakage and seal failures seen in commodity lab presses, dramatically extending service life and lowering cost of ownership.
• Unmatched Density Uniformity: The 300 MPa isostatic chamber delivers truly multidirectional pressure, ensuring your advanced materials achieve their theoretical density with zero warping or internal cracking during sintering.
• Precision Process Control: The user-friendly 4.3-inch touchscreen gives researchers precise control over ramp speeds, dwell times, and slow-release settings, allowing for strict compliance with formal standard operating procedures (SOPs).
• High-Throughput Safety: Features physical and digital pressure safeguards coupled with a heavy-duty plexiglass safety shield, allowing laboratory personnel to operate under high pressures with complete peace of mind.
• Customizable Chambers and Tooling: We offer custom-designed polyurethane sleeves and specialized chamber dimensions to support your unique material geometry and scaling requirements.

For more information on how this advanced electric cold isostatic press can enhance your research and quality control workflows, or to receive a tailored quotation, please contact our technical sales team today.
