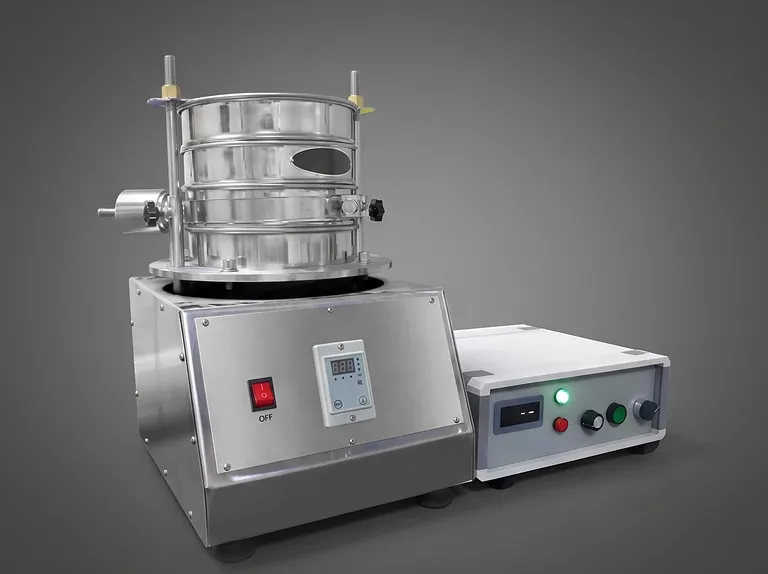

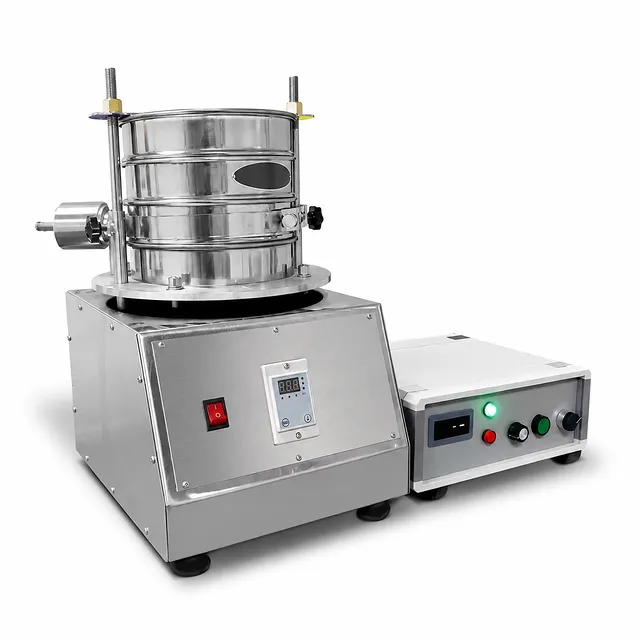

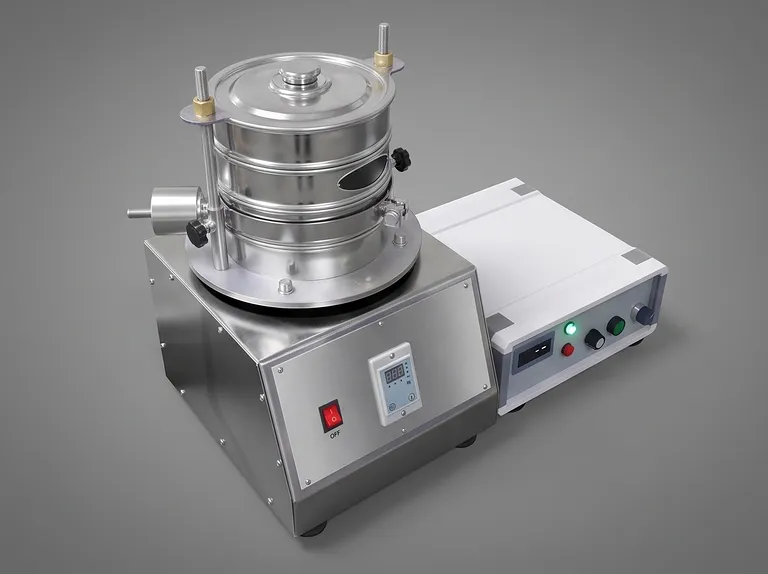

Compact Ultrasonic Vibratory Sieve System Desktop Fine Powder Sieving Shaker

Product Overview

This compact ultrasonic vibratory sieve system represents an advanced benchtop sample preparation solution designed for high-precision particle size classification and separation. Combining conventional 3D mechanical vibration with a high-frequency 38 kHz ultrasonic excitation field, this system effectively eliminates the persistent challenge of screen blinding caused by electrostatic accumulation, cohesive interparticle forces, and material surface moisture absorption. Guided by an onboard microprocessor, the equipment continuously monitors system dynamics and automatically adjusts ultrasonic resonance and excitation cycles to match real-world material loading conditions.

Engineered specifically for demanding material science research, laboratory analysis, and quality assurance applications, the unit handles fine powders across a wide particle spectrum ranging from 0.038 mm to 5.0 mm. Target industries include advanced battery electrode material manufacturing, powder metallurgy, technical ceramics, additive manufacturing, pharmaceuticals, and specialized chemical synthesis. The dual-action vibration mechanics ensure that even challenging sub-micron agglomerates and ultra-fine micro-powders are rapidly dispersed and accurately fractionated without damaging delicate mesh wires.

Built to deliver consistent performance under intensive continuous laboratory operation, this system incorporates a rugged structural chassis, an isolated generator power unit, and precision digital controls. Motorized forward and reverse trajectory modulation continuously alters powder motion paths across the sieve bed, boosting total yield while accelerating throughput. Laboratories can deploy this versatile equipment with complete confidence, knowing that each batch measurement is backed by uniform energy distribution, precise timing accuracy down to the second, and strict compliance with international manufacturing and safety standards.

Key Features

• Microprocessor-Driven Dual-Frequency Action: Superimposes a high-frequency 38 kHz ultrasonic resonance wave directly onto a 1420 r/min 3D mechanical oscillation, maintaining continuous anti-blinding performance and maximizing volumetric flow through fine screen openings.
• Adaptive Material Load Management: Onboard computer control automatically senses sample resistance on the screen deck, adjusting ultrasonic energy output and cycle duration in real time to optimize fractionating efficiency across varying charge weights up to 1.0 kg.
• Automated Bidirectional Trajectory Control: Features programmable motor direction switching that flips between forward and reverse rotation during the sieving cycle, continuously redirecting powder travel paths for thorough sample exposure and higher classification accuracy.
• High-Precision Digital Timing System: Integrated micro-controller provides accurate runtime programming down to the exact second, enabling standardized batch testing procedures and strict compliance with analytical quality control protocols.
• Advanced Anti-Clogging & Static Dissipation: High-frequency longitudinal sinusoidal waves effectively neutralize electrostatic attraction and break interparticle cohesion, allowing problem powders to pass smoothly through sieves as fine as 450 mesh (38 µm).
• High-Efficiency Resonator & Transducer Assembly: Heavy-duty piezoelectric converter efficiently transforms electrical energy into uniform mechanical vibrations across the entire screen frame without creating localized heat spots or blind zones.
• Modular Standardized Sieve Compatibility: Engineered to fit standardized test sieves (φ200 mm x 50 mm height), supplying a complete stackable multi-tier framework for simultaneous multi-fraction particle distribution analysis.
• Isolated Dust-Proof Generator Enclosure: Independent power control unit isolates sensitive high-frequency electronics from airborne conductive dust and fine particulate contamination, ensuring long-term electrical reliability in industrial test environments.

Applications

Technical Specifications

Why Choose This Product

• Superior Engineering & Anti-Blinding Efficiency: By merging high-frequency ultrasonic energy directly into the screen mesh, this equipment eliminates blinding on fine sieves down to 450 mesh, saving valuable technician time and preventing costly screen damage.
• Uncompromised Repeatability & Digital Control: The onboard microprocessor provides load-sensing adaptation, bidirectional motor trajectories, and exact second-level timing, providing pristine sample-to-sample reproducibility across critical laboratory workflows.
• Robust Safety & Electrical Isolation: Featuring an independent generator box and heavy-duty HF connection cables, the system protects core power electronics against airborne fine dust and short-circuit hazards when handling conductive materials.
• Comprehensive Material Processing Integration: Perfectly compatible with our broader catalog of crushing, grinding, planetary ball milling, and hydraulic pellet pressing equipment, forming a complete end-to-end sample preparation pipeline.
• Proven Reliability & Responsive Support: Built to strict international manufacturing quality standards and backed by a comprehensive one-year warranty and lifetime maintenance support, guaranteeing decades of reliable service.

Contact our analytical equipment specialists today to request a detailed quote or discuss custom mesh configurations tailored to your material processing applications.
