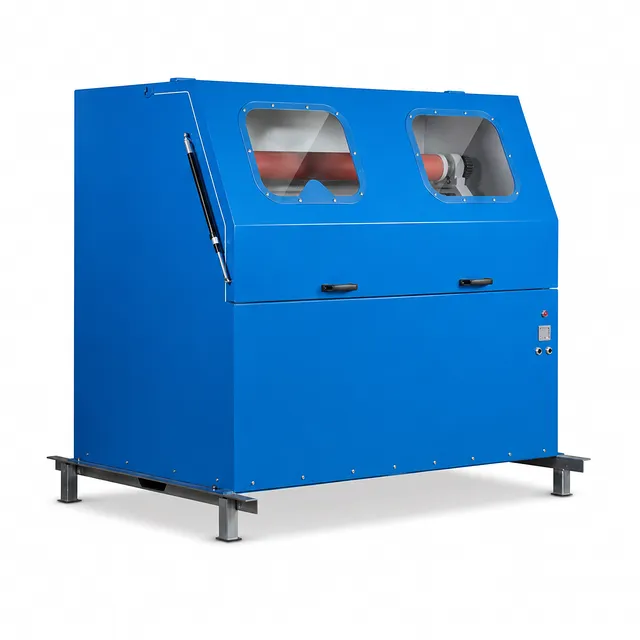

Eco Friendly Double Deck Laboratory Rod Mill Environmental Sample Preparation Grinding Mill

Product Overview

This eco-friendly double-deck laboratory rod mill is an advanced sample preparation mill engineered specifically for mineral assaying, geochemical analysis, metallurgical research, and material testing laboratories. Utilizing a high-efficiency grinding action dominated by attrition and impact forces, the equipment rapidly reduces coarse ore samples into ultra-fine, homogeneous powders. By encapsulating samples inside robust precision jars, the system achieves consistent particle size reduction while eliminating the risk of cross-contamination and hazardous airborne dust emissions during routine sample processing operations.

Designed to meet the stringent demands of industrial quality control and geological exploration facilities, this unit accommodates a wide spectrum of hard, medium-hard, and friable geological specimens. The integrated double-tier roller mechanism optimizes laboratory floor space, allowing multi-jar processing within a compact footprint. It serves high-throughput laboratories in mining engineering, environmental soil testing, ceramic powder processing, and extractive metallurgy, where repeatable grinding performance and strict particle size distribution control are critical for subsequent wet chemical assays, XRF analysis, and spectroscopic evaluations.

Engineered with heavy-duty structural components and state-of-the-art protective systems, this equipment delivers superior operational reliability in continuous laboratory environments. The inclusion of a sound-dampening acoustic hood, integrated exhaust ventilation, intelligent power-outage memory timer, and automatic over-current safety shutoff ensures safe, unattended operation. Operators benefit from a dust-free working environment that complies with international occupational health standards while maintaining maximum analytical precision and sample integrity.

Key Features

• Acoustic Noise Reduction and Dust Isolation Enclosure: Built with a fully transparent protective hood coupled with an advanced sound-dampening ventilation system, this feature effectively confines hazardous silica dust and operational noise below 65 dB. Laboratory technicians can visually inspect processing operations in real time while maintaining a clean, quiet, and safe working environment compliant with modern industrial safety standards.
• High-Efficiency Double-Tier Roller Architecture: Designed with a space-saving two-deck roller configuration, the unit doubles sample processing throughput without increasing floor space requirements. This ergonomic layout simplifies jar loading and unloading, allowing simultaneous processing of multiple independent samples to streamline analytical laboratory workflows.
• Precision Vulcanized Rubber Drive Rollers: Formulated with high-durability, wear-resistant vulcanized rubber, the drive rollers deliver smooth rotational force transmission, superior grip, and effective mechanical vibration dampening. This ensures consistent grinding jar rotation speeds, extended service life, and whisper-quiet mechanical performance even under continuous heavy jar loads.
• Heat-Treated Alloy Steel Grinding Cylinders and Rods: Precision-engineered from premium alloy steel and treated with advanced thermal quenching processes, the grinding jars and internal rods exhibit exceptional surface hardness and wear resistance. This minimizes metallic contamination during high-impact grinding and ensures rapid, uniform particle size reduction down to 0.055 mm.
• Intelligent Timer with Power-Outage Memory: Features a digital control timer that records only the actual net grinding duration. In the event of an unexpected power interruption, the internal memory pauses the timing cycle and resumes automatically upon power restoration, preventing over-grinding or under-processing of valuable analytical samples.
• Automatic Over-Current Fault Protection System: Equipped with smart electrical circuit monitoring that detects current surges or mechanical binding instantly. The system automatically cuts off power to prevent motor burnout and mechanical damage, enabling safe, reliable, and completely unattended grinding cycles during overnight operations.
• Integrated Grinding and Self-Mixing Technology: Combines high-shear rod milling with simultaneous tumbling mixing inside hermetically sealed jars. Samples are pulverized and thoroughly homogenized in a single operation, eliminating arduous, dust-generating post-milling manual sifting, sieving, or blending procedures.
• Versatile Multi-Jar Modular Options: Offered in five distinct jar capacity configurations (4-jar, 8-jar, 12-jar, 16-jar, and 24-jar setups) to suit diverse laboratory throughput requirements, from small-scale academic research to high-volume commercial assay laboratories.

Applications

Technical Specifications

General Machine Performance

Model Variants & Capacity Configurations

Component & Material Specifications

Why Choose This Product

• Proven Operational Safety and Environmental Compliance: By integrating an acoustic noise-attenuation hood and dust ventilation system with automatic over-current shutoff, this unit protects laboratory personnel from hazardous silica dust exposure and excessive noise while ensuring compliant operation.
• Superior Precision Manufacturing and Durable Build: Engineered with heat-treated alloy steel grinding media and heavy-duty vulcanized rubber rollers, the system delivers long-term mechanical reliability, minimal sample contamination, and continuous heavy-duty grinding performance.
• Automated Efficiency and Reduced Labor Costs: Combined milling and self-mixing inside sealed jars eliminates manual sieving and blending steps. Coupled with power-outage memory timing, operations can run unattended safely without operator supervision.
• Flexible Scalability for Any Laboratory Workflow: With modular models supporting 4, 8, 12, 16, or 24 grinding jars, facilities can easily select the exact capacity required for their specific testing volume and scale up effortlessly.
• Comprehensive Quality Assurance and Technical Support: Backed by our extensive expertise in complete laboratory sample preparation solutions, we provide rigorous quality testing, customizable options, spare parts supply, and responsive technical assistance worldwide.

Contact our application engineering team today to receive a personalized quote or to discuss custom jar and machine configurations tailored to your laboratory's exact sample preparation needs.
